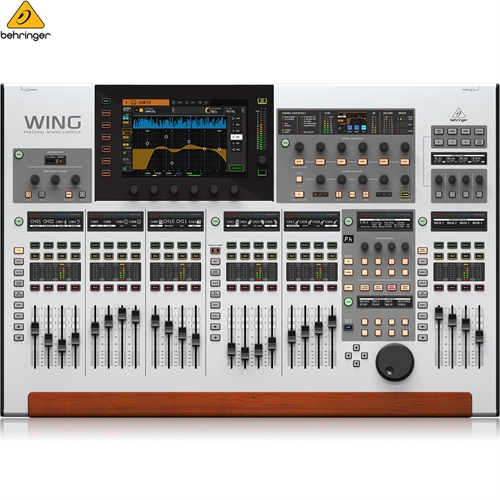

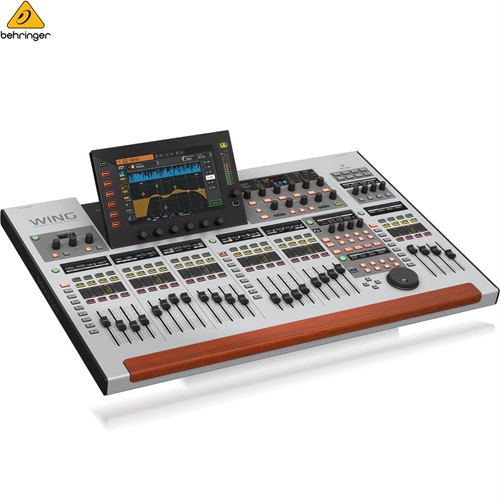

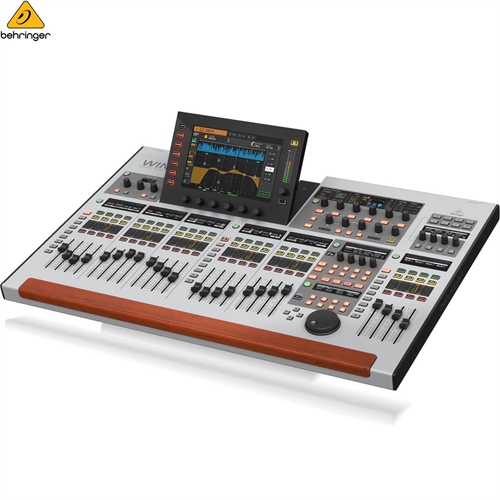

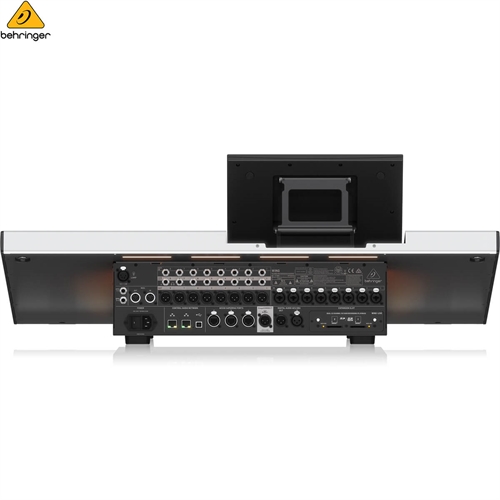

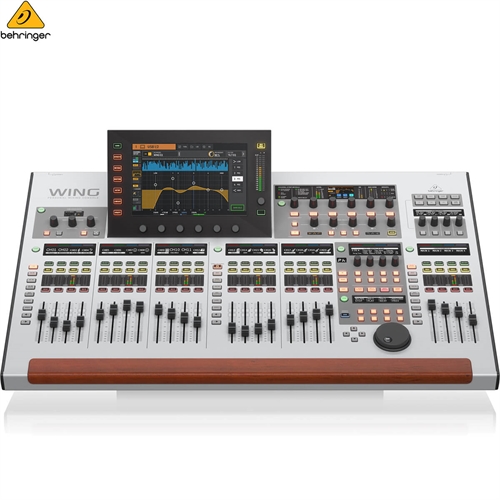

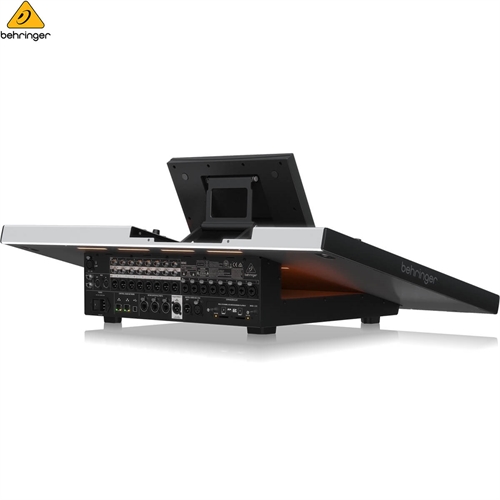

Mixer Behringer WING

Thông số kỹ thuật

• Type: Digital Mixer
• Channels: 48 Stereo (40 x channel, 8 x aux)
• Inputs - Mic Preamps: 8 x XLR-1/4" combo (mic/line)
• Phantom Power: Yes
• Outputs - Main: 8 x XLR
• Inputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Outputs - Digital: 1 x XLR (AES/EBU), 3 x EtherCON (AES50 SuperMAC), 1 x XLR (StageCONNECT)
• Send/Return I/O: 8 x 1/4" TRS (aux in), 8 x 1/4" TRS (aux out)
• Busses/Groups: 8 x Stereo Matrix, 4 x Stereo Mains, 16 x Aux Stereo Bus
• Inserts: Dual Inserts per Bus, FX Insert Slot
• MIDI I/O: In/Out
• Data I/O: 2 x Ethernet (control/audio network)
• Remote: 1 x 1/4" (GPIO 1-2), 1 x 1/4" (GPIO 3-4)
• USB: 1 x Type B, 1 x Type A
• Computer Connectivity: USB 2.0, 24-bit/48kHz (48 x 48)
• I/O Expansion Slots: 1 x Expansion Port (24-bit/48kHz)
• Headphones: 2 x 1/4"
• Faders: 24 x 100mm Motorized
• A/D Resolution: Up to 24-bit/192kHz
• EQ Bands: 6-band Parametric EQ (channel), 8-band Parametric EQ (bus), Additional EQs and Configurations
• Effects: 8 x Premium FX Stereo Processors, 8 x Standard FX Stereo Processors, 5 x Variable Plug-in Slots
• Signal Processing: Full Dynamics Processing
• DAW Control: Yes (HUI, Mackie)
• Screen: 10" Capacitive Touchscreen, Adjustable Swivel
• Storage: 2 x SD Card Slot (dual 32 track max)
• Power Source: Standard IEC AC cable
• Height: 7.9"
• Depth: 22.6"
• Width: 34.3"
• Weight: 52.8 lbs
• Manufacturer Part Number: 000-BV202-00010
